Satellite Image Resolution Enhancement Using Image Fusion Method Based On DSW and TFT-CW Transforms – P.V.Ritu Karun, Bala Krishna.CH & A.Ravi

Title: Satellite Image Resolution Enhancement Using Image Fusion Method Based on DSW and TFT-CW Transforms

Authors: P.V.Ritu Karun, Bala Krishna.CH & A.Ravi

Organisation: MVR College of Engineering & Technology, Paritala, Vijayawada

Abstract

Satellite images will be suffered from speckle noise due to the environmental disturbances such as fog and haze, which will degrade the visual quality of the images. In order to find the location or the persons, someone needs to enhance these speckled satellite images to improve the perceptual quality of images. Here, a satellite image resolution enhancement (RE) scheme has been proposed by using image fusion method based on discrete and stationary wavelet (DSW) and two-fold tree- complex wavelet (TFT-CW) transforms. Mainly, we had two steps in this algorithm: first, DSW has been used to enhance the low resoluted (LR) image into a high resoluted (HR) image. Second, the output of DSW will be given as an input to the TFT-CW image fusion method to further enhance the satellite image. Simulation results shows that the proposed algorithm has given better de-speckled results over conventional enhancement techniques such as Bi-linear interpolation, wavelet zero padding (WZP) and even that of discrete wavelet transform (DWT) and even that of DSW transform in terms of peak signal to noise ratio (PSNR) and  mean square error (MSE).

Key words: Satellite imaging, Resolution Enhancement, bilinear interpolation, wavelet zero padding, DWT, SWT, TFT-CWT and PSNR

I. INTRODUCTION

Recent years, there is a rapid growth in satellite imaging due to the demand in satellite applications such as weather forecasting, astronomy and geographical data. These images were captured with the satellite sensors which are ranging from low resolution to high resolution for collecting the desired data into images. Satellite imaging applications have been increasing day by day due to the demand in applications like agriculture, oceanologoy, regional planning, geology, landscape, biodiversity conservation, forestry, cartography, meteorology and warfare etc.,[1]. In order to analyze the satellite images, we need HR satellite images but these images will be suffered from many factors such as absorption scattering while capturing it through the satellite sensors. These noise elements will create some serious issues for further processing of images in practical applications such as marketing, artificial work, computer vision and also in many fields. Hence, to improve the quality of these images by enhancing the visual quality is an important and challenging task.  One must consider several factors to select a speckle reduction algorithm for satellite imagery.

  • A digital camera must apply a noise reduction algorithm in a fraction of a second.
  • Whether forfeiting few real information is acceptable if it allows more distortion or noise to be removed.

Interpolation is a one of the widely used method for enhancing the image, which is very simple and more popular. These techniques have been cauterized into three parts: 1. nearest neighbor interpolation, 2. Bi-linear interpolation, 3. bi-cubic interpolation. However, these methods were not suitable for all images and also gives more dark or brighter pixels after interpolating the LR images, which in results the quality degradation. There are two types of image resolution enhancement methods, those are: one is Spatial domain, which applies directly on to the pixels i.e., doesn’t need to transform the image into other form such as gray level transformation, histogram equalization, neibourhood pixel adjustment etc.,[2] and [3]. And second Transform domain, which transforms the LR image into frequency domain and then applies any algorithm to enhance the LR image to HR image such as discrete Fourier transform (DFT) [4], discrete wavelet transform (DWT) [5] and discrete cosine transform (DCT) [6].High frequency details of an image will be preserved by an adaptive anti-aliasing algorithm based on the wavelet Fourier transforms (WFT) [7] and adaptive wavelet shrinkage, which removes aliasing artifacts by shrinkage coefficients. Most effective satellite image enhancement is done by using dual tree complex wavelet transform (DT-CWT) with bicubic interpolation given in [8] and cycle spinning concept is also used to enhance LR image to HR image by merging with CWT or DWT [9] and [10]. However, all the above algorithms have been suffering from lack of reliability, much complex to implement in real time world. Hence, to overcome the drawbacks of existing methods a novel resolution enhancement scheme has been proposed using DUWT with bilinear interpolation method.

II.EXISTING METHODS

In the past decades, there are several algorithms have been developed to enhance a LR image with improved performances. In 1974 Hall et. al.proposed a gray level transformation in [11], this transformation has been used for image enhancement as well as for normalization process. Later on several filters have been developed in [12-15] and for enhancing and denoising the LR images. The author in [16] has proposed a fast filtering algorithm for enhancing the LR image, which performs noise smoothing and makes the minimum modifications in the original LR image to obtain HR image by taking the four sub images weighted combination along four major directions. In [8], [9] and [17], a satellite image resolution enhancement method based on DT-CWT, in which the LR image is decomposed into several high frequency bands. Then after these sub bands are interpolated and finally, inverse DT-CWT is used to combine these modified sub bands to get the HR image.

Fourier Transform (FT) and Short Term Fourier Transform (STFT) are the current methods used in the field of image processing. However due to severe limitations imposed by both the Fourier Transform and Short Term Fourier Transform in analyzing signals deems them ineffective in analyzing complex and dynamic signals. FT has a drawback that it will work out for only stationary signals, which will not vary with the time period. Because, the FT applied for the entire signal but not segments of a signal, if we consider non-stationary signal the signal will vary with the time period, which could not be transformed by FT. and one more drawback that we have with the FT is we cannot say that at what time the particular event will has occurred.  In STFT, the window is fixed. So, we this window will not change with the time period of the signal i.e., for both narrow resolution and wide resolution. And we cannot predict the frequency content at each time interval section. To overcome the drawbacks of STFT, a wavelet technique has been introduced with variable window size. Wavelet analysis allows the use of long time intervals where we want more precise low-frequency information, and shorter regions where we want high-frequency information.

In order to substitute the shortcomings imposed by both the common signal processing methods, the wavelet technique is used. The wavelet technique is used to extract the features in an image by processing data at different scales. The wavelet technique manipulates the scales to give a higher correlation in detecting the various frequency components in an image. In fig.1 it is shown that the comparison of FT, STFT and wavelet transform by considering an example input signal and how the analysis of transformation techniques will apply to get the frequency information of input signal. We can observe that in wavelet analysis the graphical representation shows that the wavelet has more number of features than the FT and STFT. Wavelet is also called as multi resolution analysis (MRA).

2.1 Discrete Wavelet Transform (DWT)

Discrete Wavelet Transform (DWT) is a modified version of Continuous Wavelet Transform (CWT). DWT principles are very similar to the CWT however the wavelet scales and positions are based upon powers of two.

dwt

Fig.1. Comparison of FT, STFT and Wavelet analysis of a signal

The wavelet function is defined as follows:

wavelet-function

The basic principle of DWT is to pass the input signal through a group of filters i.e., low pass and high pass filters to get the low frequency (LF) and high frequency (HF) of source signal. Low frequency contents include LL and these coefficients are known as the approximation coefficients [18]. This means the approximations are obtained by using the high scale wavelets which corresponds to the low frequency. The high frequency components which are known as LH, HL and HH of the signal are called the details which will be obtained by using the low scale wavelets which corresponds to the high frequency. The process of DWT filtering includes, first the signal is fed into the wavelet filters. These wavelet filters comprises of both the high-pass and low-pass filter. Then, these filters will separate the high frequency content and low frequency content of the signal. However, with DWT the numbers of samples are reduced according to dyadic scale. This process is called the sub-sampling. Sub-sampling means reducing the samples by a given factor.  Due to the disadvantages imposed by CWT which requires high processing power [11] the DWT is chosen due its simplicity and ease of operation in handling complex signals.

dwt-re

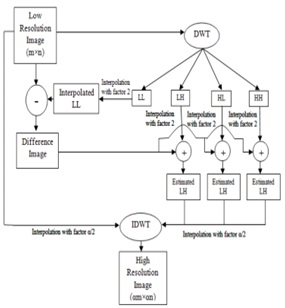

Fig2. Existing DWT-RE block diagram

Fig2 shows the block diagram of existing DWT-RE method. First, the LR image is given as an input to the DWT to decompose it into four sub bands LL, LH, HL and HH, which known as approximation, horizontal, vertical and diagonal coefficients and last three sub bands are also called as detail coefficients. These sub bands size will be half of the LR image due to that the DWT has a decimation property. Hence we need to interpolate it to further operate it with the LR image.Now, the LL sub band will be interpolated to subtract from the original image i.e., LR image, after this operation a difference image will be obtained. This difference image will be added to the high frequency sub bands LH, HL and HH to improve the high frequency sub bands information. In order to perform addition for these sub bands, we need interpolation to increase the size of decimated sub bands because, the size of difference image equals to the LR image which is an original image. After performing this operation, the estimated or modified LH, HL and HH will be obtained. The after do the interpolation for LR image with a factor of , where the parameter α is a interpolation factor, and do the same for even estimated LH, HL and HH also. Finally, apply inverse DWT to these four sub bands to get the super resolute image i.e., HR image.

However, this approach has been suffering from the decimation property of DWT, because when we apply the DWT decomposition to LR image, it will decompose the image into four sub bands with reducing the size of it to the half of LR image. Here we need to enhance the image quality but due to this decimation we lose some original information while processing with DWT. Therefore, to improve the performance of RE algorithm further, someone needs to gain the lost information and add it with high frequency sub bands to get the modified coefficients.

III. PROPOSED TECHNIQUE

This section gives a brief description about the proposed RE methods using

  1. DSW transform approach with interpolation
  2. TFT-CW transform

3.1 DSW Transform

Fig.3 shows that the proposed block diagram which includes both decimated and un-decimated wavelet transforms for improving the image quality. First, the input LR image will be given as an input to the decimated as well as un-decimated wavelets to decompose them into sub bands. Then we will get the low frequency and high frequency sub bands with the size of half of the LR image and equals to the LR image. Now, added the high frequency sub bands of both wavelet transforms, by using interpolation for increasing the size of decimated LR image sub bands to obtain the new or estimated high frequency sub bands i.e., estimated LH, HL and HH. Finally, these sub bands and LR image were interpolated with the factor of  and applied inverse DWT to get the super resolute image with more improved quality than the DWT method in terms of PSNR, SSIM and MSE.

duwt

Fig3. Proposed block diagram of DUWT with interpolation method

3.2 TFT-CW transform

In this approach a new methodology of satellite image resolution enhancement has been introduced by using image fusion method, which is based on TFT-CW transform, this algorithm is an extension for all the existing RE methods. The process “fusion” is known as improving the visual quality of image by taking two or more images as a reference with the same scene. It can be applicable in more and more real time applications such as satellite, remote sensing, medical imaging and etc. The proposed image fusion algorithm has been described below

TFT-CWT-RE

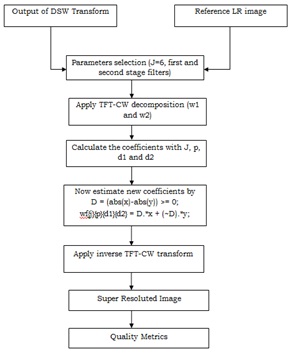

Fig4. Proposed RE scheme using TFT-CWT-RE method

Here, the output of section 3.1 is considered as the first input image and second one is a reference LR image. Now, we will apply TFT-CW transform to the both images to get the multi resoluted coefficients with number of decomposition levels and first order, second order filters, then after we will calculate the new modified coefficients by applying the fusion rule with number of orientations and scales to get the HR image.

TFT-CW

Fig5. Two-fold tree structure for complex wavelet () TFT-CW

3.3 Quality metrics

This section deals with the image quality assessment (IQA) metrics to measure the quality of resolute images. The IQA metrics used in this project are peak signal to noise ratio (PSNR) and mean square error (MSE).

psnr

IV. SIMULATION RESULTS

Experimental results have been done in MATLAB 2014a version with 4GB RAM for high speed CPU performance and tested several satellite images taken from various satellite databases. Fig6 shows that the original LR image which has been taken for testing with proposed and existing RE methods and the decomposed LR image using DWT. Fig7 shows that the output of bilinear and wavelet zero padded images. The output of DWT-RE method has shown in fig8, in which the quality of the image has been increased. Fig10 shows that the proposed DSWT-RE algorithm, we can observe that the proposed approach has given better resolute image compared to the DWT-RE method. Further improvement in perceptual quality has been achieved by using TFT-CWT-RE method, which has shown in the fig11. The quality metrics used for IQA has discussed in section III, fig12 shows that the PSNR comparison of conventional interpolation, wavelet zero padding (WZP), DWT-RE with proposed DSWT-RE and TFT-CWT-RE methods. Here, bilinear interpolation is used as a conventional interpolation scheme, which has got the PSNR of 22.978 dB, WZP has performed even better than the bilinear interpolation with an improved PSNR of 29.34 dB, further enhancement has done by using DWT-RE method which has got a PSNR of 34.9303 dB and finally, our proposed schemes performance is much superior to all the above mentioned RE algorithms with a PSNR of 35.2336 dB and 41.348 dB. MSE is inversely proportional to the PSNR i.e., if the PSNR in high then the MSE will be lesser. Another quality metric has shown in fig8, also it has shown that our proposed scheme is far better than all conventional RE algorithms in terms quality metrics and even visual perception.

lr-dwt

Fig6. Original LR image and DWT decomposed image

Bilinear and WZP-RE

Fig7. Bilinear and WZP-RE methods

DSWT-RE methods

Fig8. DWT-RE and DSWT-RE methods

TFT-CWT-RE method

Fig9. Proposed TFT-CWT-RE method

Comparison of PSNR values

Fig10. Comparison of PSNR values with existing and proposed schemes

mse

Fig11. Comparison of MSE for existing and proposed schemes

V. CONCLUSIONS

Here, in this a novel satellite image enhancement scheme has been proposed and compared with few existing state of art algorithms such as bilinear, WZP, DWT and even that of DSWT. Proposed algorithm is based image fusion scheme which has been developed by using TFT-CWT. Simulation results shows that the proposed algorithm has given better enhancement in terms of PSNR and MSE. Further, we can improve the algorithm for the 3D- satellite imaging by improving the proposed algorithms.

REFERENCES

  1. Goetz J. A. H. F.,G. Vane, J.E. Solomon, B.N. Rock,“Imaging Spectrometry for Earth Remote Sensing,” Science, 1985, vol. 228, pp. 1147-1153.
  2. Li and M. Orchard, “New edge-directed interpolation,” IEEE Trans. Image Process., vol. 10, no. 10, pp. 1521–1527, Oct. 2001.
  3. Zhang and X. Wu, “An edge-guided image interpolation algorithm via directional filtering and data fusion,” IEEE Trans. Image Process., vol. 15, no. 8, pp. 2226–2238, Aug. 2006
  4. K. Carey, D. B. Chuang, and S. S. Hemami, “Regularity-preserving image interpolation,” IEEE Trans. Image Process., vol. 8, no. 9, pp. 1293–1297, Sep. 1999.
  5. Piao, I. Shin, and H. W. Park, “Image resolution enhancement using inter-sub band correlation in wavelet domain,” in Proc. ICIP, vol. 1,pp. I445–I-448,2007.
  6. Sun and J. Tang, “A new contrast measure based image enhancement algorithm in the DCT domain,” IEEE International Conference Systems, Man and cybernetics, vol. 3, pp. 2055-2058, October 2003.
  7. Eunjungchae, Wonseokkang, Joonkipaik, “Spatially Adaptive Antialiasing for Enhancement of Mobile Imaging System Using Combined Wavelet-Fourier Transform,” IEEE transaction on consumer electronics vol 59, 4Nov 2013.
  8. Kundeti, H.K.Kalluri, S.V.Krishna,”Image Enhancement Using DTCWT Based Cycle Spinning Methodology,” IEEE Conference On Computational Intelligence andComputing Research, 2013.
  9. Demirel and G. Anbarjafari, “satellite image resolution enhancement using complex wavelet transform,” IEEE Transactions on Geosciences and Remote Sensing Letters, Vol. 7, pp. 123–126, 2010.
  10. Temizel and T.Vlachos, “Wavelet Domain Image Resolution Enhancement Using Cycle Spinning,” Electronics Letters, vol.41.pp119-121, 2005.
  11. Hall, “Almost Uniform Distributions for Computer ImageEnhancement”, Computers, IEEE Transactions, Volume: C23,Page(s):207-208,1974.
  12. Keshavan, M. Srinath, “Interpolative models inrestoration and enhancement of noisy images”, Acoustics,Speech and Signal Processing, Volume: 25, Page(s): 525-534, 1977.
  13. Lee, “Digital Image Enhancement and Noise Filtering byUse of Local Statistics”, Pattern Analysis and MachineIntelligence, Volume: PAMI-2, Page(s): 165-168, 1980.
  14. Algazi, “FIR Anisotropic filters for image enhancement”,Acoustics, Speech, and Signal Processing, Volume: 11, Page(s): 2471-2474, 1986.
  15. Keren, S. Peleg and R. Brada, “Image sequenceenhancement using sub-pixel displacements”, ComputerVision and Pattern Recognition, Page(s): 742-746, 1988.
  16. Hegang, L. Kaufman and J. Hale, “A fast filteringalgorithm for image enhancement”, Medical Imaging,Volume: 13, Page(s): 557-564, 1994.
  17. Demirel, G. Anbarjafari, “Satellite Image ResolutionEnhancement Using Complex Wavelet Transform”,Geoscience and Remote Sensing Letters, Volume: 7, Page(s):123-126, 2010.
  18. Demirel, G. Anbarjafari, “Discrete Wavelet TransformBasedSatellite Image Resolution Enhancement”. Geoscienceand Remote Sensing, Volume: 49, Page(s): 1997-2004, 2011.
